DRILL SHARPENER
D-KEN 26

DRILL SHARPENER
DRILL SHARPENER
DK-50
DRILL SHARPENER
D-KEN 13
DRILL SHARPENER
D-KEN 26
ENDMILL GRINDING MACHINE
Apollo 13
DRILL SHARPENER
SMK-13
Desk Top Type
Automatic Drill Sharpener
Xin

Using metal collet Grinding Size φ13～φ26

Specification

Drill Dia
φ13.0〜φ26.0
Motor Output
300W 4.6/4.8A
Tip Angle
90°、118°〜135°
Overall Dimensions
W342×D265×H273
Thinning Shape
X Thinning
Net
26kg
Possible Length
more than 110 mm
(Taper shank, difference diameter shank, etc. Approximately 100 mm or more,
not including the shank.)

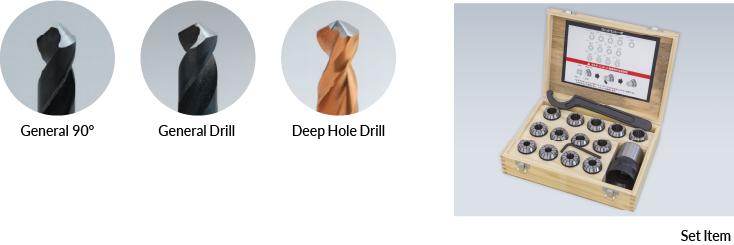

Accessories
Spring Collet x 13 pcs
Collet Holder Set x 1 set
Hex Wrench
Hook Spanner
Grinding Wheel
CBN#170
Power Supply
AC100V 50/60Hz
Rotation Speed
3,000/3,600rpm

MOVIE

You can see the movie of the grinding

Setting
1min37s

Grinding
2min04s

Catalog Download
