ENDMILL GRINDING MACHINE
Apollo 13
DRILL SHARPENER
SMK-13
Desk Top Type
Automatic Drill Sharpener
Xin

The operation is easy to re-grind with 2 and 4 flutes.

Specification

Applicable diameters
φ4.０～φ13.0
(4 Flutes : φ6.0 ~)
Power Supply
AC100V 50/60Hz
Shank diameters
φ4、6、8、10、12
Rotation Speed
7,200rpm
Flutes
4 Flutes, 2 Flutes
Motor Output
100W
Applicable Drill Length
as per our catalog
Overall Dimensions
W220×D220×H200
Tip ~ Shank length
as per our catalog
Net
4.8kg

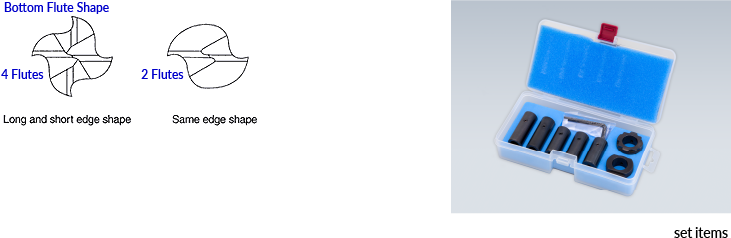

Bottom Flute Shape
as per our catalog
Accessories
Holder Pipe x 5 pcs
Holder Ring for 4 flutes
Holder Ring for 2 flutes
Holder Case, Hex Wrench x 2 pcs, Brush, Power Code
Axial angles
Secondaly Clearance Angle 6°, 3rd Clearance Angle 20°, Gash Angle 35°
Grinding Wheel
CBN #170
(Sold separately Diamond Grinding Wheel DIA #270)

MOVIE

You can see the movie of the grinding

Setting
1min18s

Grinding
1min58s
